Hot melt adhesive dispensing machine (hereinafter referred to as hot melt adhesive dispensing machine) is equipped with needle heater and precise temperature controller, which is suitable for dispensing various solid colloidal dispensing, realizing efficient, constant temperature and quantitative dispensing.
Equipment Characteristic:
1. The body of hot melt glue machine is small and light, realizing the real constant temperature glue heating;
2. ispensing heater can be operated by hand, which is more suitable for automatic assembly line of dispensing machine with dispensing manipulator;

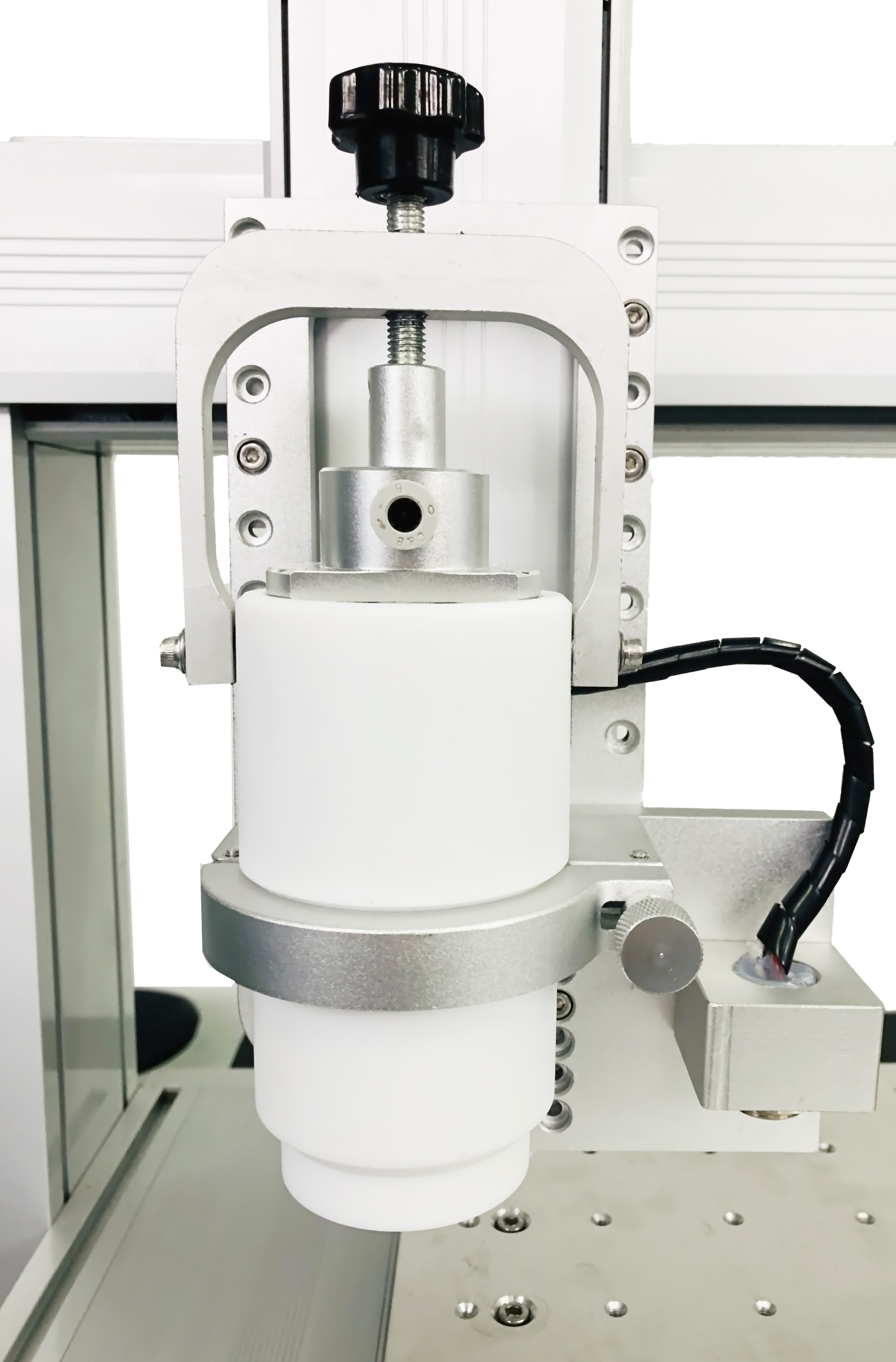

3. The outer layer of the needle heater is made of safe teflon insulation material, which can effectively maintain the internal temperature to achieve better thermostatic effect and avoid danger;
4. Quick adhesion speed, high production efficiency, very suitable for automatic assembly line operation;
5. The heating head is made of pure copper, which has the advantages of quick heating, uniform heating and high benefit;
6. The heating temperature range is generally recommended to be between 0 and 200, and the actual temperature can be adjusted by the customer;
7. According to the specific temperature requirements of the glue, plastic or metal syringes are optional (usually choose metal syringes above 120);
8. Digital display setting temperature and real-time temperature are clear at a glance;
Specificatios:
Product Name | ARW-331HM | ARW-441HM | ARW-551HM |
Temperature Setting Range | 0-200℃ | ||
Temperature Adjustment Range | Room temperature-200°C | ||
Temperature Error | ±2℃ | ||
Working Range X/Y/Z(mm) | 300/300/100 | 400/400/100 | 500/500/100 |
Maximum Load X/Y/Z | 8 kg/8 kg / 2 kg | ||
Translational Speed(mm/sec) | 0.1-500/350 | ||
Mechanical Repeatability | ±0.02mm | ||
Data Memory Capacity | It can store 1000 documents and every document can store 8000 movement locus. | ||
Display Mode | LCD | ||
Safety Protection | Photoelectric Sensor | ||
Edit Programming | KCP | ||
I/O Signals | 4 Inputs / 4 Outputs | ||
Patterns | Dot/Line/DrawArcs/3D Locus | ||
Direct Drive | Precision Ball Screw |
Application Range:
1.Mobile phone industry, tablet industry, solid adhesive needs to be heated before it becomes molten;
2. Preheat the glue when dispensing in the electronic industry;
Applicable glue:
Suitable for PUR hot melt adhesive PUH hot melt adhesive strip glue block high viscosity glue etc.
